Intercity Coach

Intercity Coach.

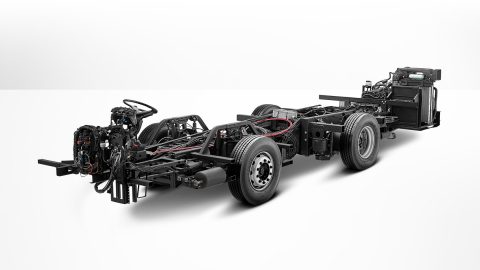

Developed for the middle and long distance regional services, The OH 2436 RF 6×2 chassis incorporates all the benefit of Mercedes-Benz technology. It is a robust and highly durable vehicle suited to severe operating and service conditions. The chassis is built to carry 24 tonnes and a body up to 14 meters long. It incorporates novel safety systems like ESP, GO 240-8 automated transmission and steerable auxiliary rear axle (ERA) (optional). In short, it combines bold design with the quality associated with the passenger transport segment leader.

Make / Model OM 457
Capacity (cm3) 11967
Layout 6 cylinder Inline
Type Turbo
Power – kW @ r/min 260 @ 2200
Torque – Nm @ r/rim 1600 @ 1100
Make / Model G 240
Type Synchromesh
Shift Automated
No of Forward Gears 8
High / Low Ratios 6.571 / 0.633
Dimensions (mm)
Overall Height 1775
Overall Length 9375
Overall Width 2477
Front Overhang 2100
Rear Overhang 2755
Wheelbase 3000
Mass (kg)
Manufacturer’s Gross Vehicle Mass (GVM) 24000
Manufacturer’s Gross Combination Mass (GCM) 24000
Tare (T) 6146
Manufacterer’s Rear Axle Weight 11000
Manufacterer’s Rear Tag Axle Weight 6000
Manufacterer’s Front Axle Weight 7100
Drive Axle
Reduction Type Single
Final Ratio 3,909
Type Full air dual
Front Drums
Rear Drums
Anti-lock Braking System (ABS) Yes
Tank Capacity (l) 400
Size 315/80R22.5
